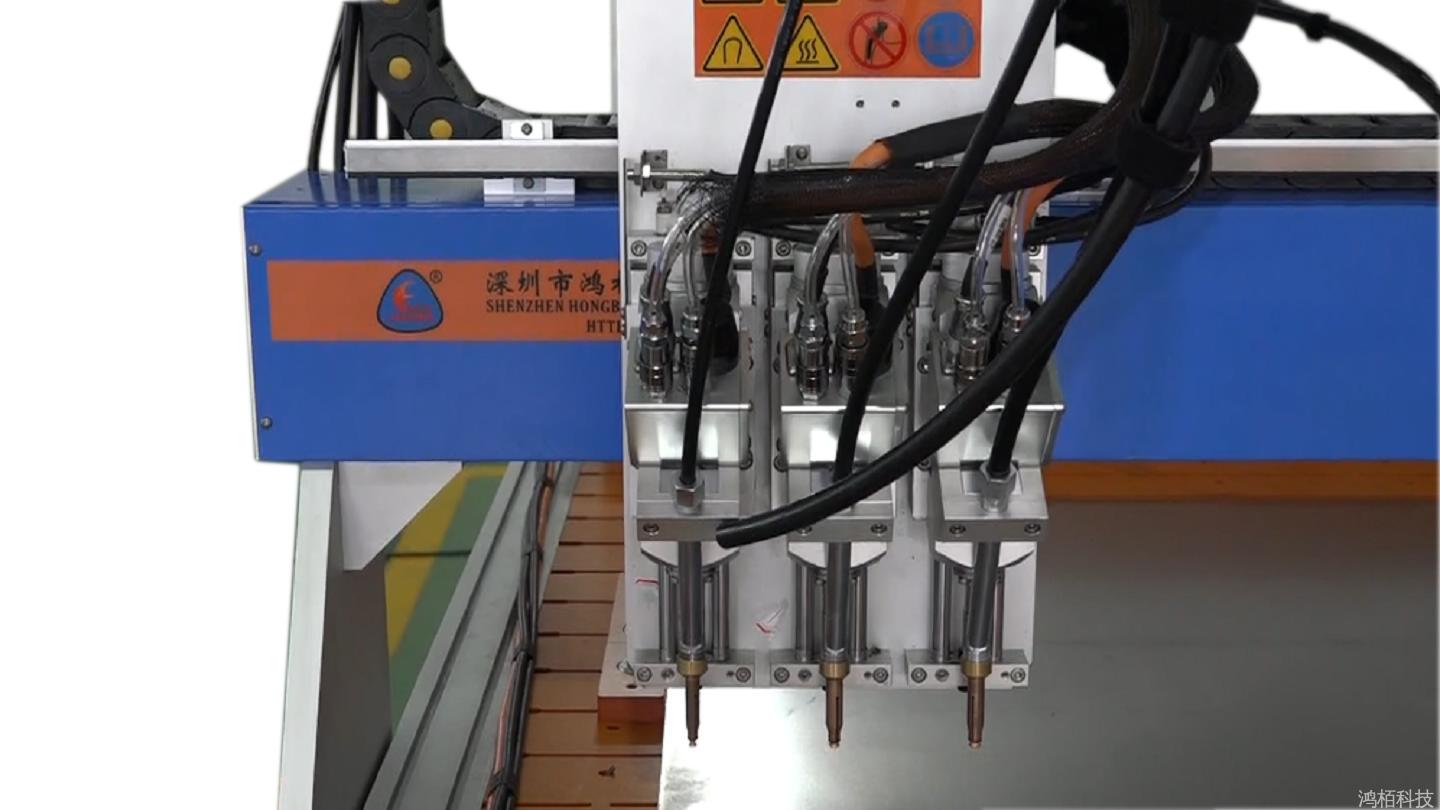

 CNC 螺柱焊接系统(自动螺柱焊接平台)是一种高精度、高效率全自动数控螺柱焊接装置。X、Y轴传动均采用高精度滚珠丝杆线性模组,运行稳定,定位精度高,使用寿命长;控制系统采用工业级PC及运动控制卡,交流伺服驱动; 搭载储能螺柱焊机拉弧式螺柱焊机,以适应不同的焊接需求。Z轴可选择气动或电动伺服驱动,可配置一个或多个焊接终端,以满足不同领域的个性化需求。

SAW-Z series of stud welding automation platform is an automatic CNC Stud Welding System with high precision and high efficiency. 3-axis is driven through linear guidance with ball bearing, which ensures stable operation, high positioning accuracy ang long life of the system. the control system uses the industry-level industrial computer mainboard, motion control card and AC servo drive, while the welding machines use SAW-D capacitor discharge welding machine (also with SAW-3000A DSP-based high-frequency inverter stud welder).CNC stud welding system (automatic stud welding platform) is a high-precision, high-efficiency fully automatic CNC stud welding device. Both X and Y axis drives use high-precision ball screw linear modules, stable operation, highly accurate positioning , and long service life; the control system uses industrial-grade PC and motion control card, AC servo drive; it is equipped with energy storage stud welding machine, drawn arc stud welding machine to meet different welding needs. The Z axis can be driven by pneumatic or electric servo, and can be equipped with one or more welding terminals to meet the individual needs of different fields.


性能特点 Features


A、人机界面友好;

B、能将DXF文件转换成程序文件;

C、可根据图纸进行实时仿真模拟;

D、可对运行速度及时间进行监测控制;

E、可对运行速度和循环时间进行调节;

F、可自动检测焊钉是否输送到位;

G、平台大小可根据客户需求定制;

H、可为客户定做各类工装夹具。


A. User-friendly interface

B. DXF files converter to programming files

C. Real-time simulation according to the drawings

D. Monitoring and display of the motion speed and time-

E. Regulation of the motion speed and cycle time accord

F. Monitoring of stud transport(aut. program stop, if stud

stud is missing)

G. The size can be customized

H. Can order various fixtures


性能指标 TECHNICAL DATA

规格、型号

Model

可根据客户需求订制

焊接螺钉范围

Wldering range

直径(D)M2~M10, 长度(L)8~35MM

焊接材料

Working material

低碳钢(low carbon),不锈钢(stainless steel),铜(copper)和铝合金(aluminium alloy and brass)

X轴移动范围

Traverse path x-axis

可根据客户需求订制

Y轴移动范围

Traverse path Y-axis

可根据客户需求订制

焊枪提升范围

Height adjustment

200mm

定位精度

Positoning accuracy

±0.15mm

重复精度

Repeating accuracy

±0.15mm

运行速度

Traverse path speed

Up to 25m/min

焊接速度

Welding rate

15~25 studs/min
