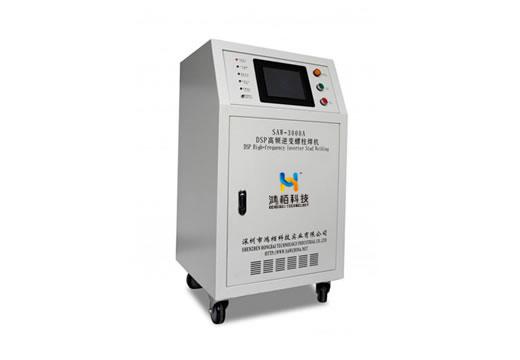

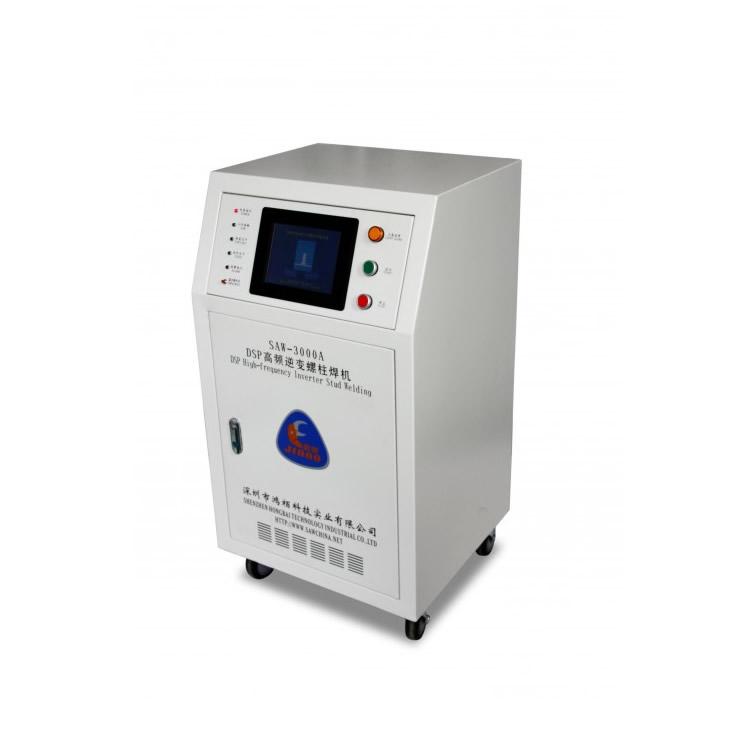

金螯 SAW-3000A型高频逆变螺柱焊机
金螯 SAW-3000A型高频逆变螺柱焊机
金螯 SAW-3000A型高频逆变螺柱焊机
金螯 SAW-3000A型高频逆变螺柱焊机
金螯 SAW-3000A型高频逆变螺柱焊机
金螯 SAW-3000A型高频逆变螺柱焊机

金螯 SAW-3000A型高频逆变螺柱焊机

  • 品牌 金螯 SAW-3000A
  • 颜色 白色
  • 产地 深圳
详情

该成套设备主机采用IGBT逆变节能技术和DSP全数字控制技术,自带5个焊枪接口,可实现手动装钉、人工焊接;自动装钉、人工焊接和与 机器人 连接的全自动焊接。

该设备的最大焊接电流可达1500A。

The welding system applies IGBT inverter technolog and DSP control technology, and have the capacity carrying 5 welding can be achieved,when the system docks with robots under auto-feeding.

Max. welding current can reach 1500A.

主机主要技术性能 TECHNICAL DATA

A、电路拓扑:全桥全波整流

B、电流控制技术:恒流PWM

C、功率开关:IGBT

D、功率变压器:铁氧体

E、监控接口:光电隔离

F、系统控制:DSP数字处理器

G、操作控制:触摸屏

H、屏幕显示:中/英文

I、网络拓扑:RS 485实时半双以太网及CAN总线

J、硬件抗干扰:隔离供电,信号光电隔离

K、软件抗干扰:分布式WatchDog跑飞复位。回传校验,

在线空闲自检,主动休眠回避

L、监测系统:实时工况及故障监测

M、质量保证:焊接质量监测及优化


A. Circuit topology: Full Wave Bridge Rectification

B. Current control technology: PWM

C. Power switch: IGBT

D. Power transformer: ferrite

E. Interface monitoring: optoelectronic isolation

F. System Control: Microprocessor

G. User interface: Touch screen

H. Language: Chinese/English

I. Network topology: Real-time half-DUPLEX RS 工 , 485

J. Hardware Anti-interference: isolated power supply

K. Software Anti-interference: Distributed Watchdog,

error return and check, hiccup reset

L. Monitoring system: real-time working condition and fault detection

M.Quality assurance: monitoring and optimization of welding quality

主机总体性能指标 OVERALL TECHNICAL DATA

输入

Input voltage

3×380V, 50Hz

输出

Max.KVA ransge

In:100~1500A

引弧电流可调范围IP

Arc initiation current

20~100A

焊接时间可调范围TW

Welding time

6~100ms

引弧时间可调范围IP

Arc initiation time

10~100ms

电流允差

△I

△I:10A

允许网压范围

Input voltage tolerance

380VAC±10%

最大输出功率

Max.KVA ransge

90KVA

每分钟可焊次数

Welding rate

n: 30~60 (I=1500A, t=30ms)

螺柱直径

Welding stud Range

Φ:3~10mm

装钉时间

Stud fixing time

50~2000ms

送料时间

Feeding time

50~2000ms

延迟时间

Lag time

50~500ms

焊钉下落时间

Stud falling time

0~50ms

配套能力

Supporting capacity

5个焊枪接口,一个程控或群控

RS485接口及以太网
