  • 10KHZ逆变直流 点焊机 是我公司研制生产的一种全新的电阻焊机。该产品采用目前世界上最先进的高频逆变技术、全桥软开关技术和DSP数字控制技术;输出频率一万赫兹。具有变压器体积小、输出功率大、焊接成型好、焊接飞溅少、控制精度高等特点。在焊接多层镀锌钢板和高强度钢板时,不但焊点质量好,而且可以做到基本无飞溅。本产品共获得国内发明专利四项,实用新型专利十五项,软件著作权证书三项,另有两项国际发明专利正在接受专利指定国的审查。

  • 该产品具有以下特点:

  • 1、变压器体积小,重量轻,不但实现了变压器和焊钳的一体化,也有利于减轻 机器人 焊钳的整体重量。

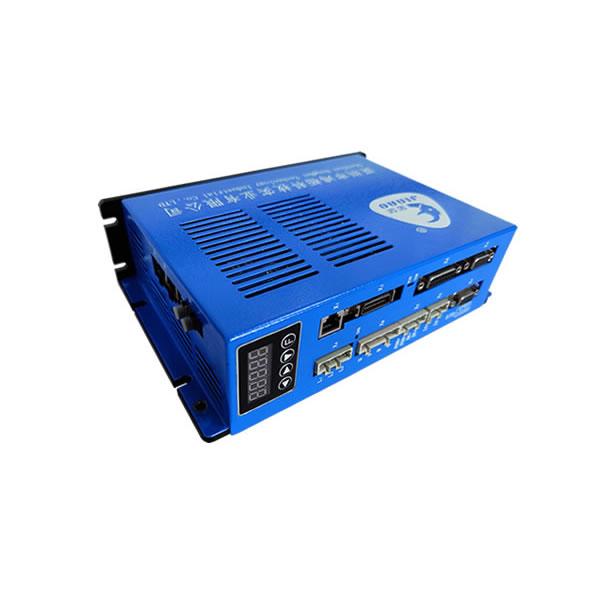

  • 2、焊钳伺服 电动缸 可采用进口的 中空电机 ,也可以采用我公司自主研发并获得多项专利的电动缸。进口的中空电机采用行星 滚柱丝杠 ,其使用寿命是普通 滚珠丝杠 的5-10倍。我公司生产的电动缸结构设计合理,噪音低,刚性强,使用寿命长,

  • 维护简单。

  • 3、获得多项外观专利的机器人焊钳本体,采购航空铝加工,刚性好,强度高,变形量小,对提高焊接质量,起到了很好的保障作用。

  • 4、焊接主机与机器人通讯采用DEVICENET协议,也可根据用户要求,配置个性化通讯模块。

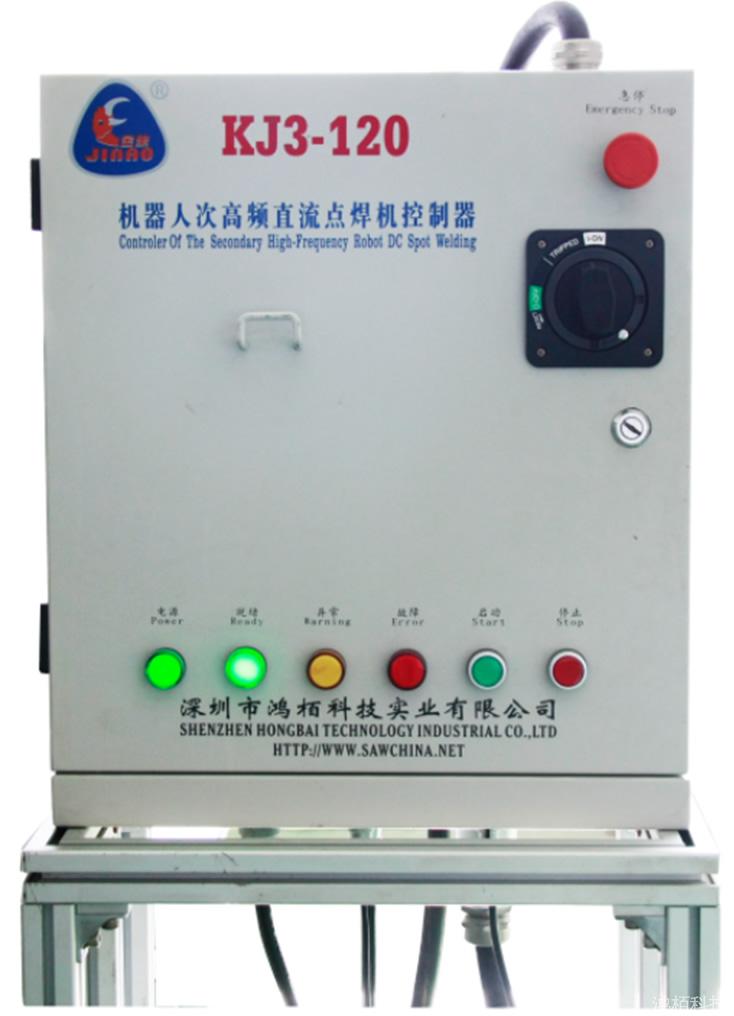

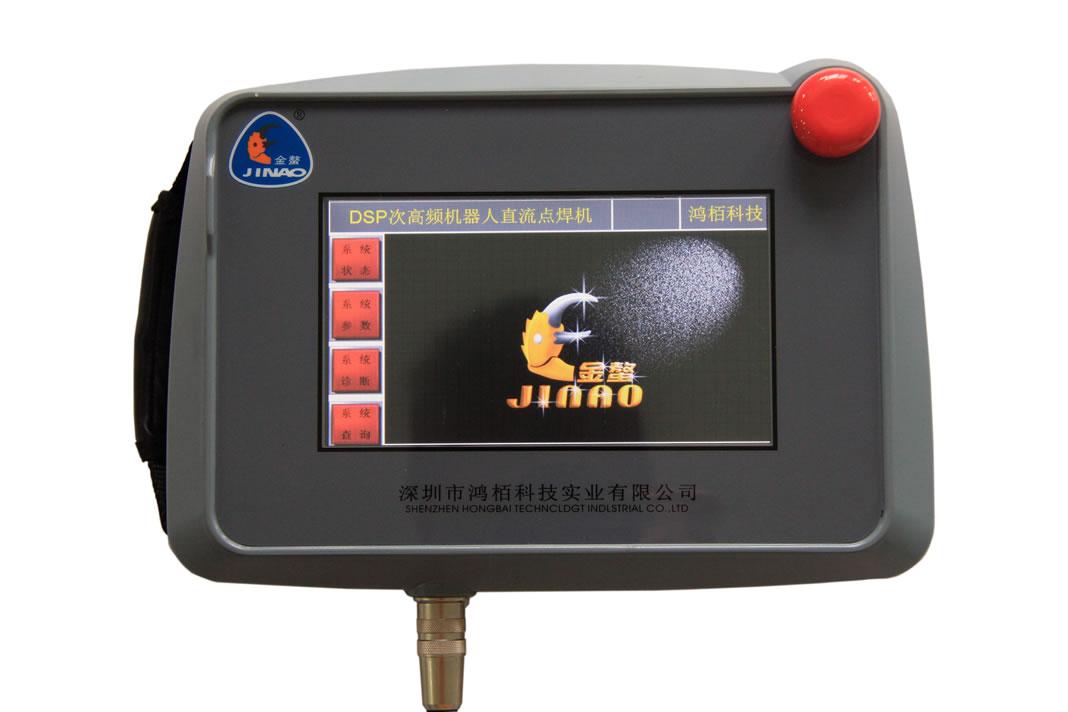

  • 作为国家十二五重大专项“基于机器人的汽车焊装自动化生产线”项目的承担者之一,次高频电动伺服机器人专用直流 点焊机 已经被一汽轿车公司的D009车型的地板线、M3车型的主焊线等多款车型采用;该产品还于2013年成功中标上海通用汽车D2UX平台机器人点焊机项目,数十台次高频逆变直流机器人专用电动伺服点焊机,专门用于该项目的高强度钢板焊接。




  • The High frequency inverter DC welding machine is our company to develop and produce new kind of resistance welding machine. The device is the most advanced high-frequency, full-bridge soft switching inverter technology technology and DSP digital control technology, output frequency of 10,000 Hz. Transformer welding forming of small size, high output power, well, less spatter, high control precision. When welding multi-layer of galvanized steel and high strength steel,not only the solder quality, and we can do the basic emission-free. The product won four national invention patents, fifteen utility model patents and three software copyright certificate and another two international patents under patent review of the designated State.

  • The device has the following characteristics:

  • 1. transformers are small, light weight, not only to achieve the integration of transformer and electrode holder, and also help reduce the overall weight of robot welding clamp.

  • 2. hollow motor gun retract servo linear actuator can be imported, can also takethe company independent research and development and a number of patented linearactuator. The hollow motor adopts imported roller screws, its service life is 5-10 times the ordinary ball screw. Iproduced the electric cylinder structuredesign, low noise, strong rigidity, long service life, easy maintenance.

  • 3. won a number of design patents of robot welding clamp body, procurement ofaviation aluminum processing, good rigidity and high strength, deformation issmall, to improve the weld quality, and played a positive role as a safeguard.

  • 4. welding and robot communications hosts using the DEVICENET Protocol, also according to user requirements, configure a personalized communication module.

  • As national Twelve-Five major special "based on robot of car welding loaded Automation line" project of bear who one, times HF electric Servo Robot dedicated DC spot machine has was Faw sedan company of D009 models of floor line, and M3 models of main welding line, variety models used; the equipment also Yu 2013 success bid Shanghai General car D2UX platform robot spot machine project, dozens of inverse changed DC robot dedicated electric servo spot machine, specifically for the project of high strength plate welding.

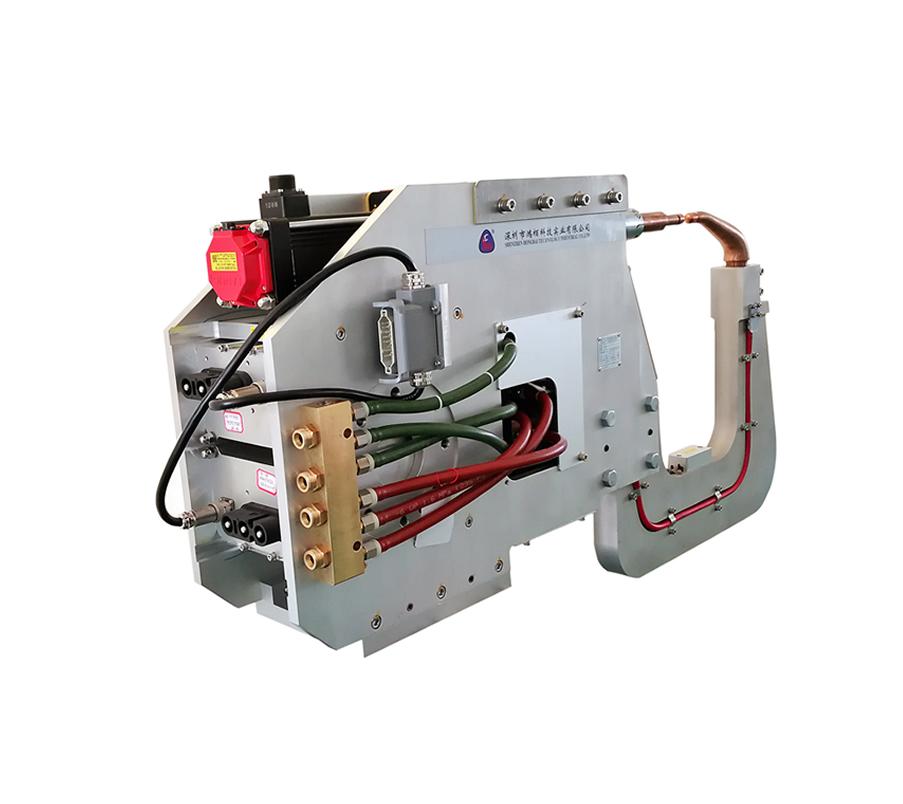

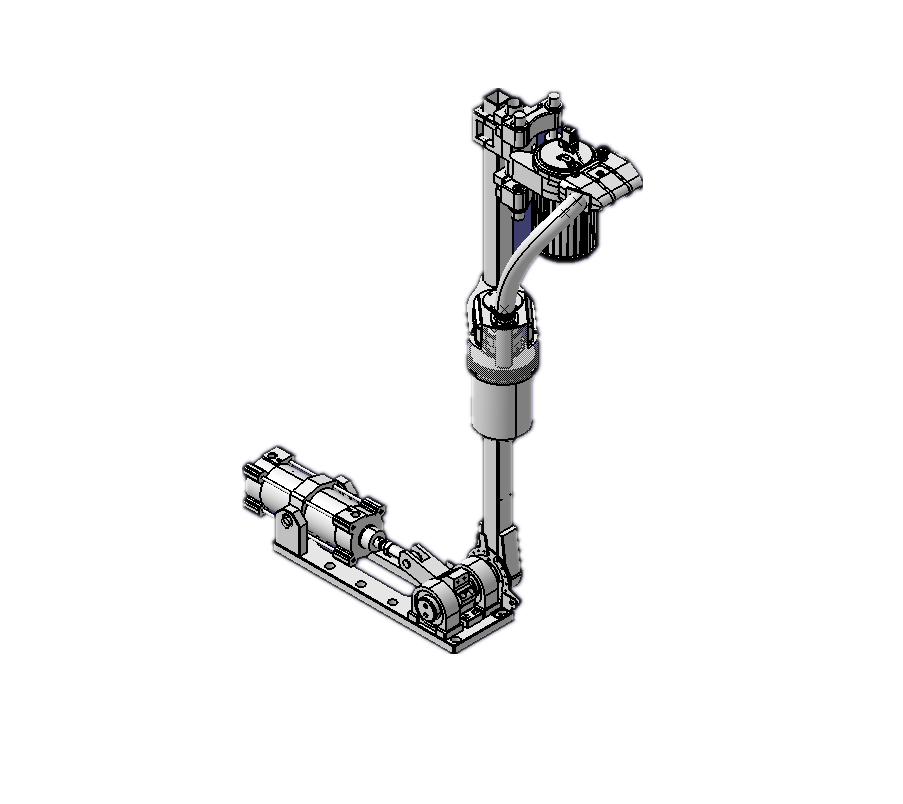

    C 型机器人专用电动伺服焊钳

    C Type-Robotic Spot Welder

    X 型机器人专用电动焊钳

    X Type-Robotic Spot Welder

    主要参数表 (TECHNICAL DATA):




    型号Type

    参数                    Parameters

    DB6-40Z

    DB6-63Z

    DB6-100Z

    额定输入功率     Rared input power

    40KVA

    63KVA

    100KVA

    额定输入电源电压   Rated Input voltage

      三相380V ± 10%

    三相380V ± 10%

    三相380V ± 10%

    安全保护电流 Safety protective current

    30mA

    介电强度          Dielectric strength

    4000V,60s( 初---次级)

    最大短路电流Max.short-circuit current

    12000A

    15000A

    18000A

    焊接范围             welding range

    0.5+0.5—2.5+2.5mm

    0.5+0.5—3.5+3.5mm

    0.5+0.5—3.5+3.5mm

    焊接速度              welding rage

    10-30 点/分钟

    10-30 点/分钟

    10-30 点/分钟

    空载电压       Max.welding voltage

    DC8.5V

    DC8.5V

    DC10.8V

    焊接时间范围             weld time

    5---500ms

    额定负载持续率    Rated duty cycle

    20%

    绝缘等级         insulation class

    F 级(155 )

    防护等级          Class protection

    IP54

    环境温度      Working temperature

    5---40

    电动缸压力  Electric cylinder pressure

    0---7000N

    水路压力           Water pressure

    0.3Mpa

    冷却水流量      Cooling water flux

    10L/min

    12L/min

    14L/min

    控制箱体积         Pedestal volume

    长480 宽256高559

    焊钳重量      Welding clamp weight

    60-90KG

    65-100KG

    70-120KG

    控制箱重量         Pedestal weight

    30KG
